PACIFIC No. |
TR No.
(JIS No.) |
Features |
Effective Pressure Range
(MPa) |
Effective Tempe-
- rature Range
(centig.) |
Barrel Gasket |
Cup Gasket
(Material) |
Spring
(Material) |
Suggested Installing Torque
(Ncm) |
Overall Length
(mm) |
Material |
Color |

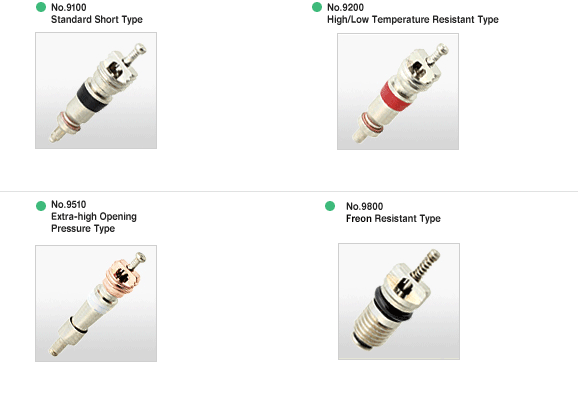

9100 |
C-1
(B-type) |
Standard |
0 ~ 1.5 |
-20 ~
+100 |
Teflon |
Black |
Silicone
Rubber |
Stainless Steel |
29 |
20 |
9200 |
C-1
(Bh-type) |
High/Low Temperature Resistant |
0 ~ 1.5 |
-54 ~
+140 |
Teflon |
Red |
Silicone Rubber |
Stainless Steel |
29 |
20 |
9400A |
C-4 |
High/Low Temperature Resistant |
0 ~ 3.4 |
-54 ~
+140 |
Teflon |
Natural |
Silicone Rubber |
Stainless Steel |
29 |
19.5 |
9410 |
|
Fixed Opening Pressure |
0 ~ 1.5 |
|
Teflon |
Black |
Silicone Rubber |
Stainless Steel |
29 |
20 |
9500 |
|
High Opening Pressure |
0 ~ 13.7 |
|
Teflon |
Natural |
Nitrilic Rubber |
Stainless Steel |
29 |
21.5 |
9510 |
|
Extra-high Opening Pressure |
0 ~ 68.6 |
|
Teflon |
Natural |
Nitrilic Rubber |
Stainless Steel |
29 |
23.5 |
9520C |
|
Freon Resistant
(CFC-12)
(HCFC-22) |
0 ~ 3.4 |
-20 ~
+100 |
Teflon |
Natural |
Nitrilic Rubber |
Stainless Steel |
29 |
19 |
9560A |
|
Freon Resistant
(HFC-134a)
(HFD-1234yf) |
0 ~ 3.4 |
-20 ~
+100 |
Teflon |
Red |
H-NBR
Rubber |
Stainless Steel |
29 |
19 |
9600 |
|
Gas Resistant |
0 ~ 1.5 |
|
Teflon |
Natural |
Nitrilic Rubber |
Stainless Steel |
29 |
20 |
9710 |
|
Low Opening Pressure
(0.28 ~ 1.4) |
0 ~ 1.5 |
-10 ~
+120 |
Teflon |
Natural |
Polyacrlic Rubber |
Stainless Steel |
29 |
20 |
9800A |
|
Heat Resistant Freon
(HFC-134a)
(HFD-1234yf) |
0 ~ 3.4 |
-20 ~
+120 |
H-NBR
Rubber
(O-ring) |
Black |
H-NBR
Rubber |
Stainless Steel |
29 |
20 |
