PACIFIC
No.
|
TR No.
(JIS No.)
|
Features
|
Effective
Pressure Range
(MPa)
|
Effective
Tempe-
- rature Range
(centig.)
|
Barrel Gasket
|
Cup Gasket
(Material)
|
Spring
(Material)
|
Suggested
Installing Torque
(Ncm)
|
Overall
Length
(mm)
|
|
Material
|
Color
|
|

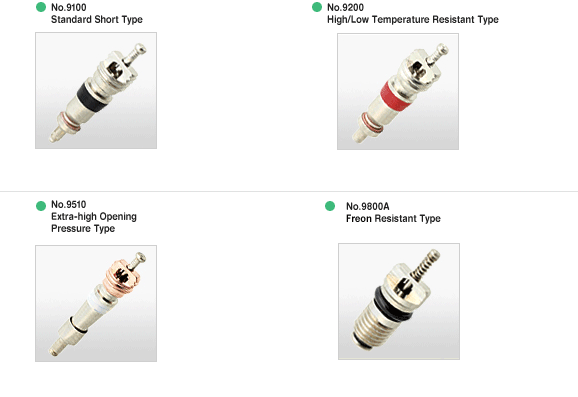

9100
|
C-1
(B-type)
|
Standard
|
0 ~ 1.5
|
-20 ~
+100
|
Teflon
|
Black
|
Silicone
Rubber
|
Stainless
Steel
|
29
|
20
|
|
9200
|
C-1
(Bh-type)
|
High/Low
Temperature Resistant
|
0 ~ 1.5
|
-54 ~
+140
|
Teflon
|
Red
|
Silicone
Rubber
|
Stainless
Steel
|
29
|
20
|
|
9400A
|
C-4
|
High/Low
Temperature Resistant
|
0 ~ 3.4
|
-54 ~
+140
|
Teflon
|
Natural
|
Silicone
Rubber
|
Stainless
Steel
|
29
|
19.5
|
|
9410
|
|
Fixed Opening
Pressure
|
0 ~ 1.5
|
|
Teflon
|
Black
|
Silicone Rubber
|
Stainless
Steel
|
29
|
20
|
|
9500
|
|
High Opening
Pressure
|
0 ~ 13.7
|
|
Teflon
|
Natural
|
Nitrilic
Rubber
|
Stainless
Steel
|
29
|
21.5
|
|
9510
|
|
Extra-high
Opening Pressure
|
0 ~ 68.6
|
|
Teflon
|
Natural
|
Nitrilic
Rubber
|
Stainless
Steel
|
29
|
23.5
|
|
9520C
|
|
Freon Resistant
(CFC-12)
(HCFC-22)
|
0 ~ 3.4
|
-20 ~
+100
|
Teflon
|
Natural
|
Nitrilic
Rubber
|
Stainless
Steel
|
29
|
19
|
|
9560A
|
|
Freon Resistant
(HFC-134a)
|
0 ~ 3.4
|
-20 ~
+100
|
Teflon
|
Red
|
H-NBR
Rubber
|
Stainless
Steel
|
29
|
19
|
|
9600
|
|
Gas Resistant
|
0 ~ 1.5
|
|
Teflon
|
Natural
|
Nitrilic
Rubber
|
Stainless
Steel
|
29
|
20
|
|
9710
|
|
Low Opening
Pressure
(0.28 ~ 1.4)
|
0 ~ 1.5
|
-10 ~
+120
|
Teflon
|
Natural
|
Polyacrlic
Rubber
|
Stainless
Steel
|
29
|
20
|
|
9800A
|
|
Heat Resistant
Freon
(HFC-134a)
|
0 ~ 3.4
|
-20 ~
+120
|
H-NBR
Rubber
(O-ring)
|
Black
|
H-NBR
Rubber
|
Stainless
Steel
|
29
|
20
|
